Solar Switchboard Upgrade for Battery and Ducted Air Con in Chelmer

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade that accommodates a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was necessary.

Why Choose Precision Electrical & Air for Your Essential Switchboard Upgrade?

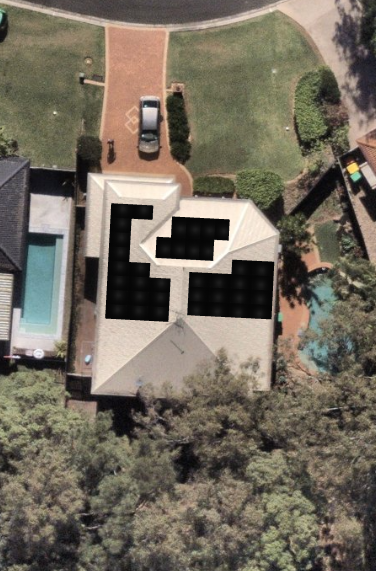

This homeowner in Chelmer undertook a significant renovation that incorporated the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for the entire household. Additionally, a new ducted air conditioning system was integrated into the renovation plans. Before connecting these advanced electrical systems, it was vital to assess and upgrade the existing switchboard to ensure compliance with contemporary standards and effectively manage the increased electrical demands that these installations would introduce.

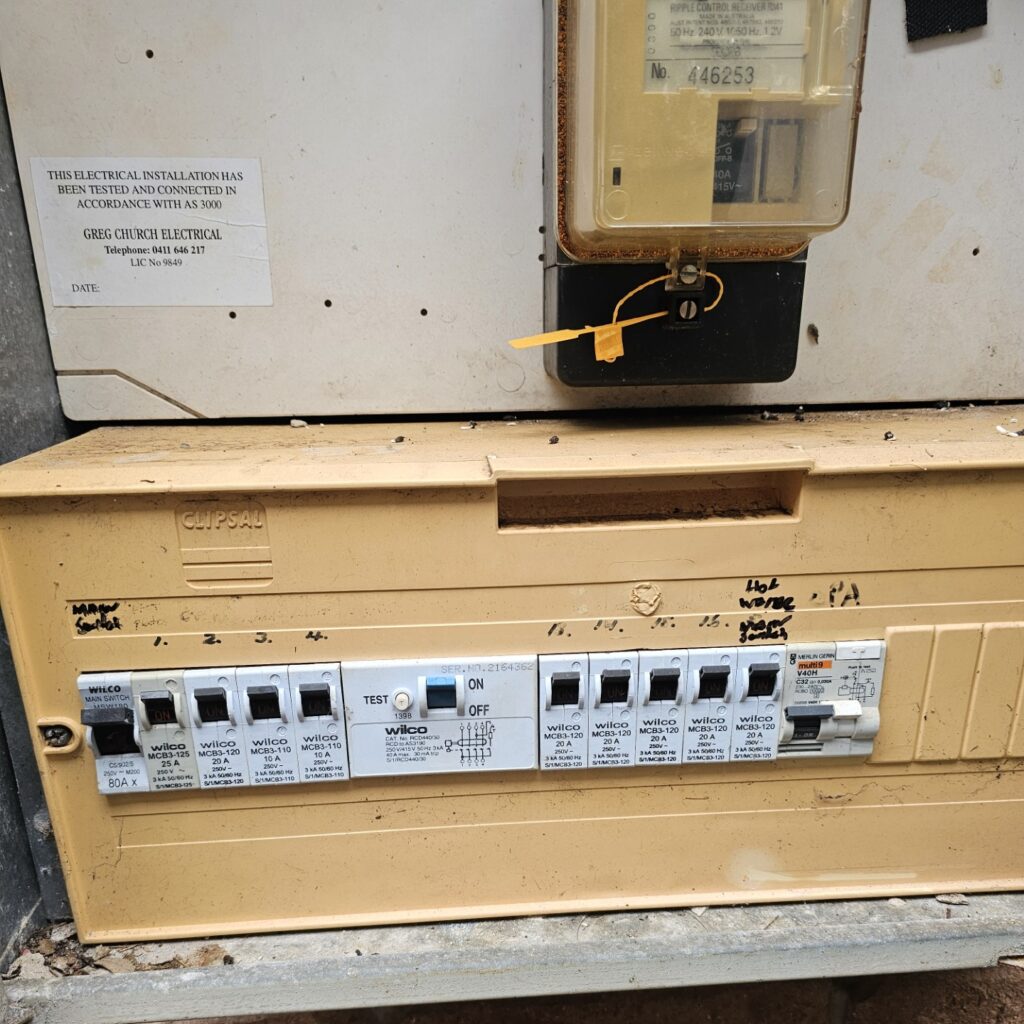

The original switchboard was outdated, featuring obsolete circuit breakers and only a single Residual Current Device (RCD) that provided protection for the entire property. It lacked the capacity to support solar energy integration and battery storage. Moreover, the circuit labeling was inadequate, rendering it non-compliant with modern standards governing current energy generation systems. This non-compliance posed a significant risk to the efficient operation of the newly upgraded systems, which could lead to potential hazards if left unaddressed.

Is a Three-Phase Upgrade Truly Necessary for Your Electrical System?

When assessing the specifications of a 17.86kW solar system in conjunction with a 30kWh battery, it is a common misconception that a three-phase upgrade is imperative. This misunderstanding can result in considerable financial implications for the homeowner, potentially incurring costs ranging from £3,500 to £6,000, alongside a lengthy approval process from Energex for necessary network modifications.

In-Depth Technical Assessment to Evaluate Upgrade Necessity

Two pivotal factors played a significant role in determining whether a three-phase upgrade was genuinely required. Firstly, the supply cable for the residence was strategically located close to the street junction. This advantageous positioning allowed the voltage rise calculation for solar energy export to remain comfortably within Energex's single-phase limit of 2%. Secondly, the design of the solar and battery systems aimed to decrease demand on the grid, rather than increase it, meaning there was no technical rationale from the network's viewpoint for necessitating a three-phase upgrade. Additionally, the ducted air conditioning system was confirmed to meet the crucial parameters for effective single-phase operation.

As a result, the decision was made to retain the existing single-phase configuration. The switchboard underwent an upgrade to ensure it could safely and efficiently manage all new electrical loads without compromising safety or adherence to regulatory standards.

Thorough Examination of Installed Components for Enhanced Safety and Compliance

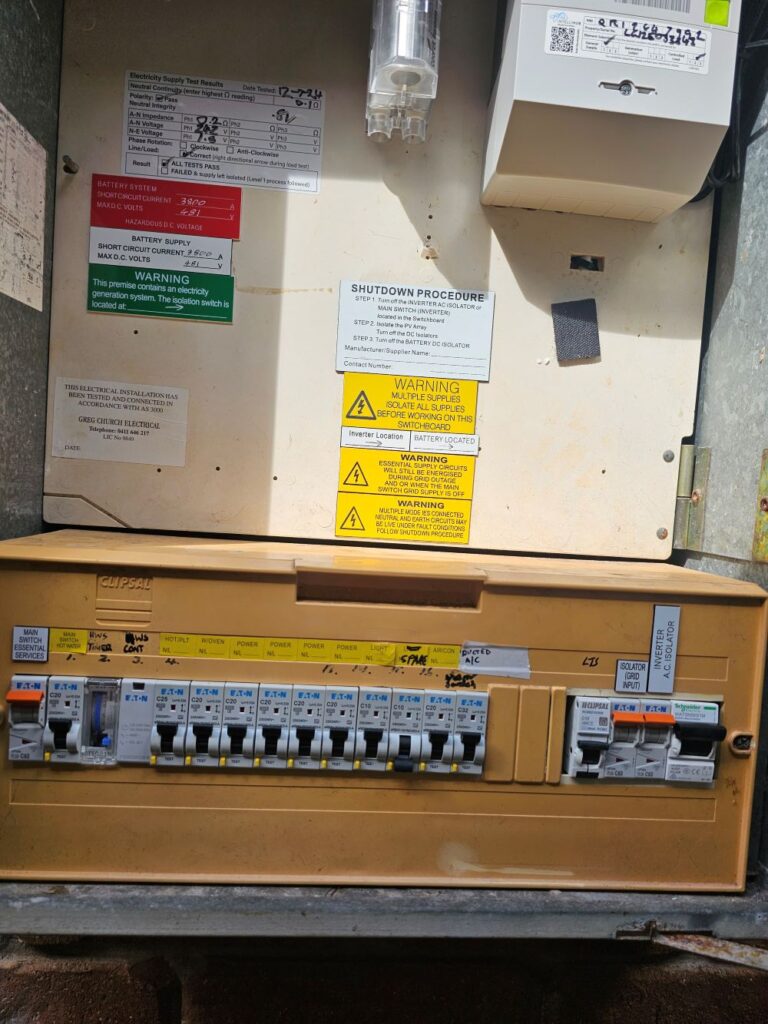

The existing switchboard underwent a comprehensive dismantling and thorough reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units from Eaton, with each breaker meticulously labelled for clear identification. The circuits were carefully segregated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to enhance safety and ensure compliance with current regulations.

A timer was incorporated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic addition significantly reduces reliance on the grid by optimising the use of the solar system’s output throughout the day. Furthermore, a dedicated Hot Water Service (HWS) contactor circuit was established to ensure proper functionality and energy efficiency.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, alongside multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully conducted and meticulously documented for the switchboard.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately configured for any future electrical service work that may be required at the property.

Homeowner Realises Benefits from Successful Upgrade

The homeowner has successfully obtained a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary costs associated with a three-phase upgrade that was not essential for their specific circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be vital in certain situations, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your specific needs, allow Precision Electrical & Air to perform a thorough evaluation. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will use to approve your property.

We guarantee there is no upselling; you will receive an accurate evaluation tailored to your home.

Your Frequently Asked Questions Addressed

How do electricians determine the necessity of three-phase power for solar systems?

The assessment depends on two primary factors: voltage rise and load demand. Electricians evaluate the distance from the property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration suffices. However, if the voltage rise exceeds this threshold, three-phase power becomes necessary to distribute the export load across three conductors, effectively maintaining the voltage rise within acceptable parameters.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not determine the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, resulting in a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance stays within this limit to ascertain whether single-phase or three-phase power is suitable for your property.
