Shed Wiring Tips: Key Installation Advice for Professionals

If you possess a shed on your acreage property and are tired of relying on extension leads from your home, it is crucial to think about having it properly wired. Whether your shed serves as a basic storage shed requiring just a light and a power point or a fully equipped workshop for using welders and compressors, there is a structured process to follow. In NSW, the only legal and safe way to achieve this is by hiring a licensed electrician who can ensure compliance with safety standards.

This comprehensive guide details the necessary steps to provide power to your shed, outlining what your electrician will need for installation and offering an estimate of the costs likely to be incurred in the Mid North Coast region.

Initiate Your Shed Wiring Project with a Proper Cable Run

The most vital component of any shed wiring project is creating a reliable power source that connects your main switchboard to your shed. Depending on the size of your property, this distance can range from 30 to over 100 metres. The longer the cable run, the larger the cable size required to effectively manage voltage drop, ensuring your shed receives the needed power efficiently and safely.

You essentially have two primary options for establishing your cable run:

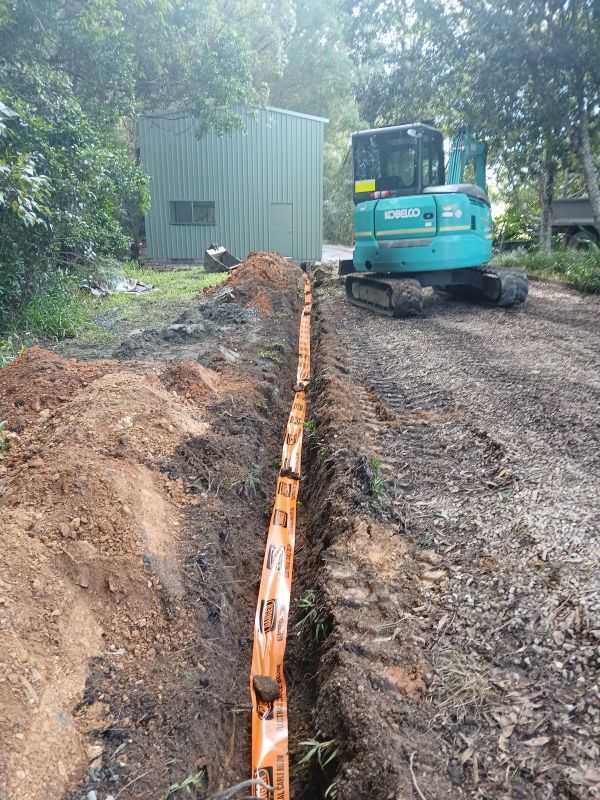

• Underground cable run — This is the preferred and most aesthetically pleasing choice. A licensed electrician will install heavy-duty cable through orange conduit, buried at least 500mm deep (or deeper if vehicles are expected to traverse the area). This approach protects the cable from adverse weather conditions, animals, and falling branches, making it suitable for most acreage properties.
• Overhead cable run — While this method is less common in modern installations, it may be necessary in cases where solid rock or difficult terrain complicates trenching. Overhead installations must comply with specific clearance heights and support poles, which can significantly increase overall costs.

For the majority of properties in Bellingen, Coffs Harbour, and the Mid North Coast, the underground option remains the best choice. Your electrician in Bellingen can evaluate your site and recommend the most efficient route for your installation.

Create a Dedicated Sub-Board for Efficient Shed Power Management

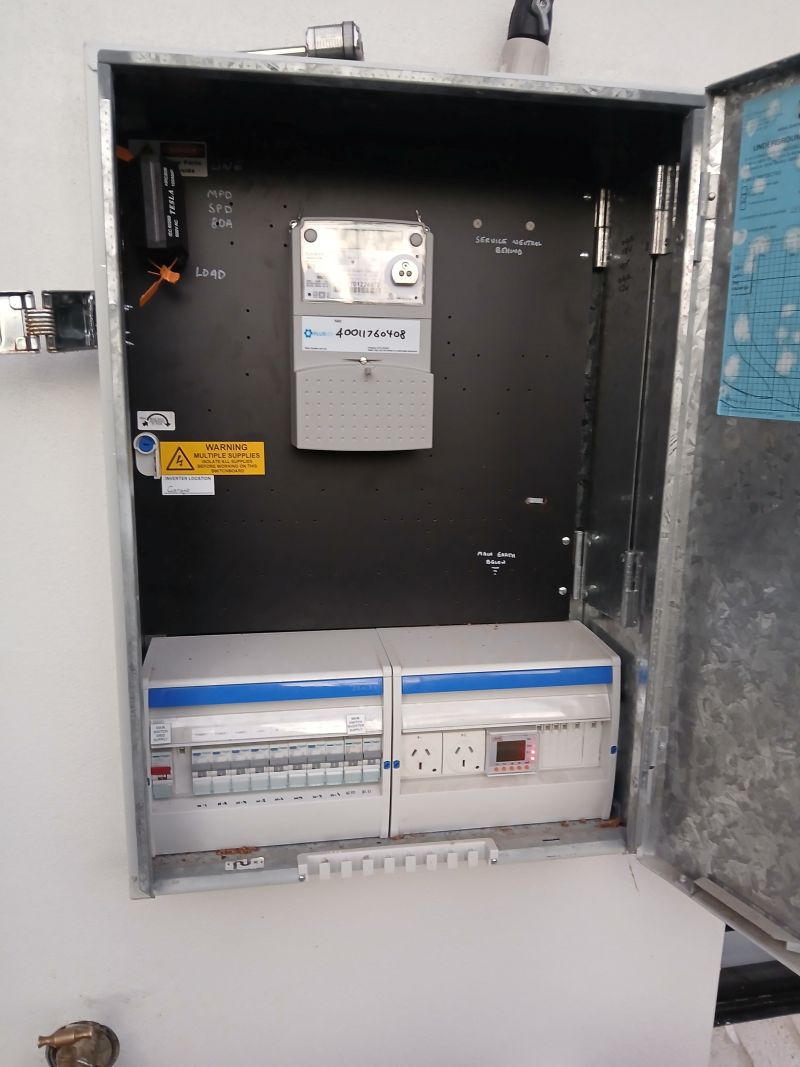

Simply running a single cable to the shed is insufficient; you need proper infrastructure to ensure functionality. Any shed receiving a dedicated power supply must be equipped with its own sub-board, also known as a distribution board. This setup operates as a mini switchboard within the shed, effectively managing all electrical circuits and guaranteeing safe operation.

Your sub-board will typically consist of essential components:

• Main switch — This switch allows you to isolate all power to the shed independently from the main house, adding an extra layer of safety.
• RCDs (safety switches) — These devices are a requirement under NSW electrical regulations. They cut the power instantly in milliseconds if a fault occurs, which is vital in a shed environment that is frequently exposed to moisture, dust, and potential hazards.
• Circuit breakers — These provide individual protection for each circuit in your shed, covering lighting, general power, and dedicated tool circuits, ensuring you can operate multiple devices without risking overload.

If your house's main switchboard is older, your electrician may suggest upgrading the switchboard to handle the additional load directed to the shed, ensuring that all connections remain safe and efficient.

What Essential Equipment Should Your Electrician Install Inside the Shed?

The specific installations performed by your electrician inside the shed will be customised to its intended use. Here’s an in-depth breakdown of what these installations typically include.

Optimising a Basic Storage Shed Setup

For a shed primarily used for storing tools, a ride-on mower, or general equipment, consider these installations:

• LED batten lights — Installing one or two ceiling-mounted LED battens can effectively illuminate the entire space. Your trusted electrician can advise on the most suitable lighting layout based on the shed's dimensions and your specific storage requirements, ensuring every corner is well-lit.

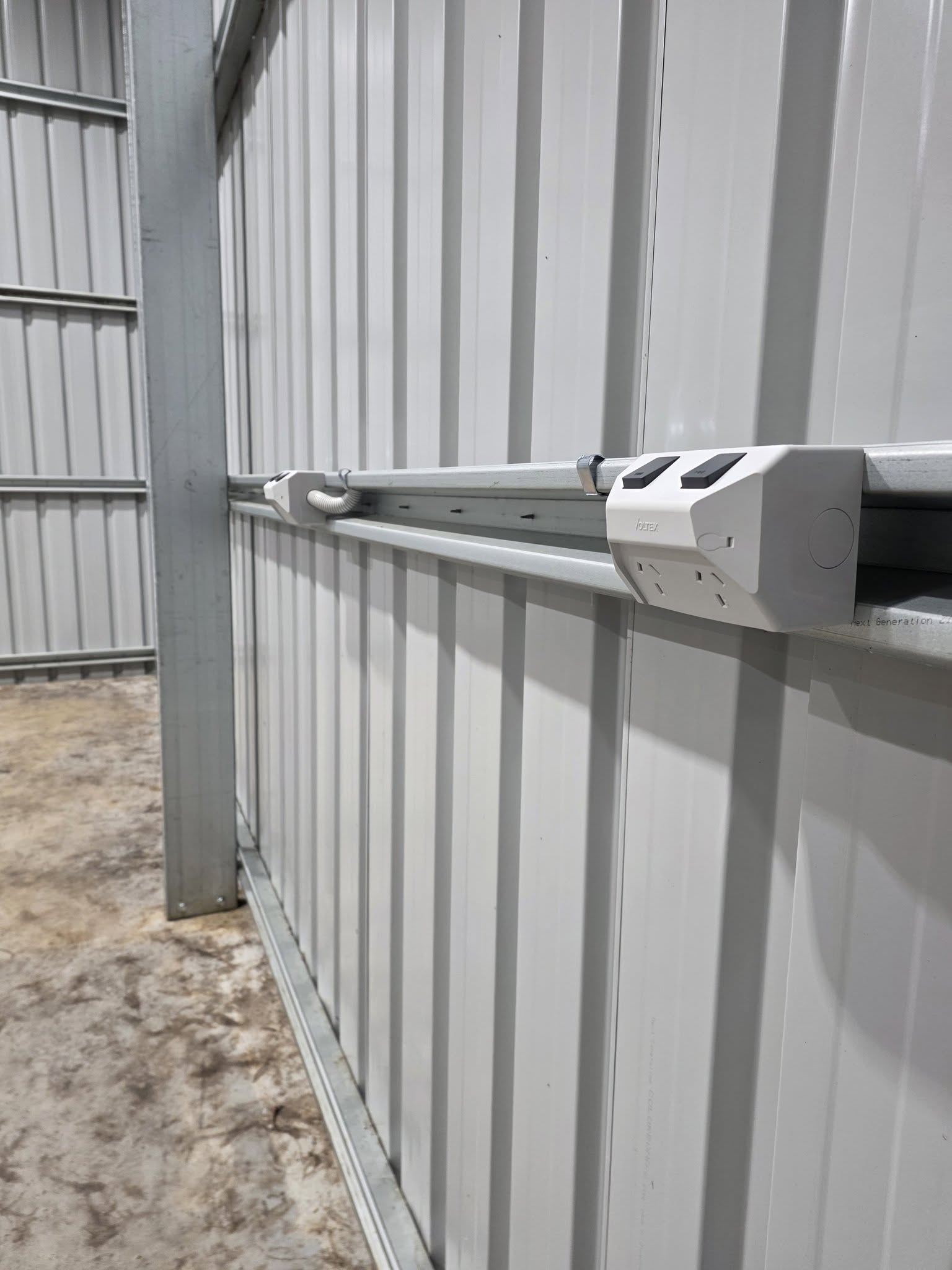

• Two to four general power points — This quantity is adequate for plugging in chargers, radios, or a drop saw as needed. Standard power points and switches will operate on a single circuit, providing versatility for various tools and devices.
• External light — An outdoor-rated LED light above the door ensures that you can access the shed safely without fumbling in the dark, thus enhancing both safety and convenience.

Designing a Fully Powered Workshop Shed for Maximum Efficiency

If you frequently operate power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and necessitate meticulous planning:

• Multiple circuits — Create separate circuits for lighting, general power, and specialised power tool outlets. This configuration prevents lights from flickering every time you activate a saw, ensuring a stable and efficient working environment.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively accommodate heavier tools, ensuring you have the correct power supply for your equipment without risk.
• Increased number of power points with optimal placement — Ensure outlets are positioned at workbench height rather than only at skirting level, facilitating ease of use based on your workbench arrangement and workflow.

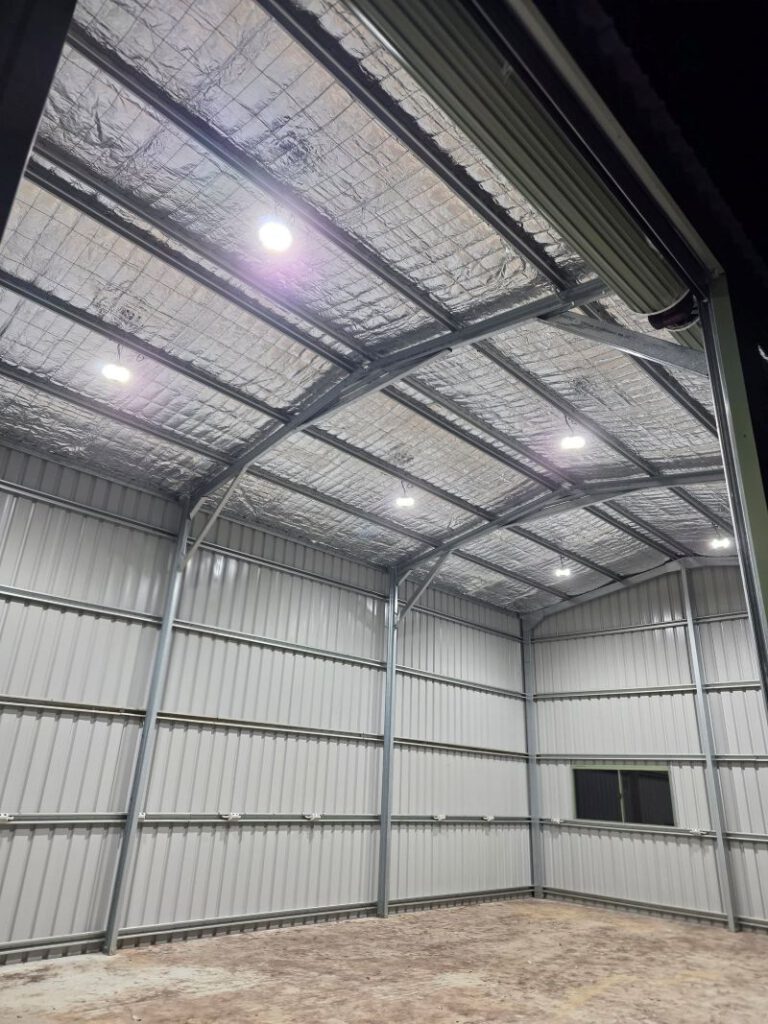

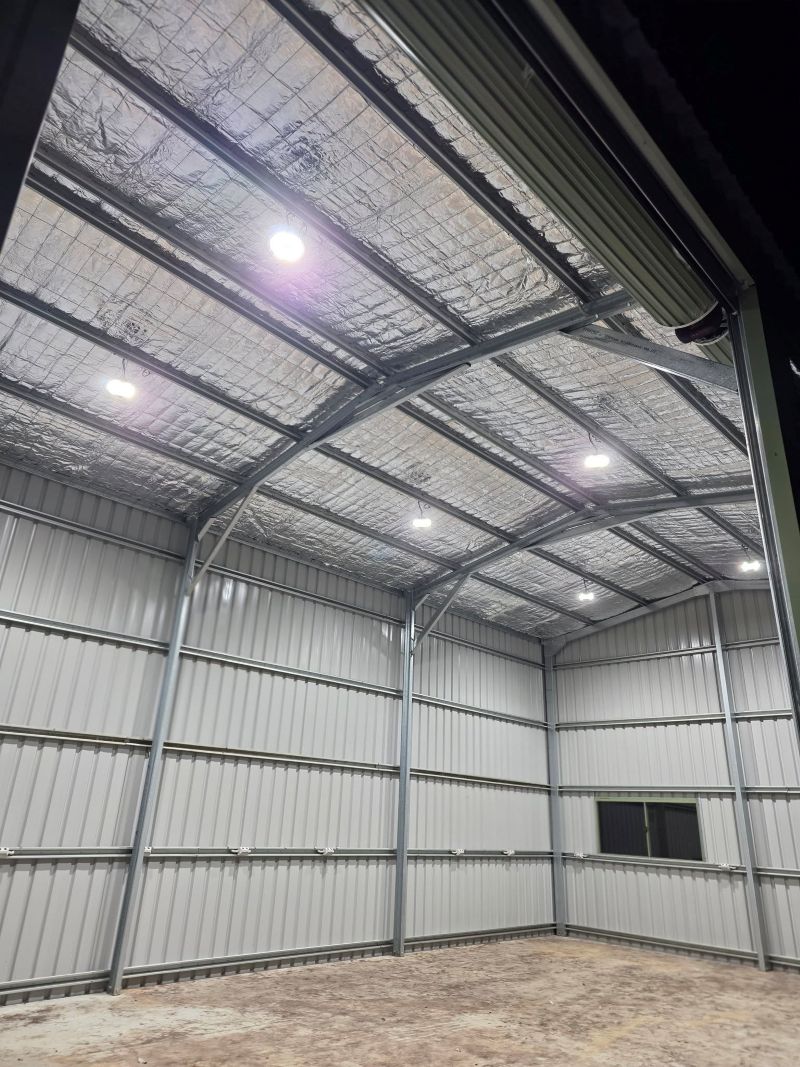

• Dedicated lighting — Provide brighter, targeted lighting over work areas, utilising LED high-bays for larger sheds to enhance visibility and safety, ensuring you can work effectively at all times.

For comprehensive guidance on establishing dedicated circuits for heavy tools, check out Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which delves into the specifics of effective wiring solutions tailored for demanding environments.

Equipping a Full Workshop with Essential Three-Phase Power

If your activities involve heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not suffice. This is where three-phase power becomes vital to meet your demands.

Three-phase power offers a more stable and higher-capacity power supply, allowing you to operate multiple heavy-duty machines simultaneously without sacrificing performance. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast area).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs to ensure safety and compliance with regulations.
• Utilise heavier cabling — Keep in mind that three-phase cable runs can be more expensive, particularly over extended distances, so careful planning is essential to avoid unforeseen costs.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you plan to operate, ensuring they provide the necessary power for effective functioning at all times.

If you’re uncertain about whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this resource discusses when it is advantageous and when a properly configured single-phase system will be adequate for your needs. We also provide full three-phase switchboard installation if that aligns with your objectives.

Invest in Essential Surge Protection for Your Shed

Properties located on the Mid North Coast frequently experience severe lightning storms. A direct or nearby strike can potentially damage everything within your shed, including tools, chargers, fridges, and any devices plugged in, leading to costly repairs and replacements.

Investing in a reliable surge protection device, installed within the sub-board, acts as inexpensive insurance against electrical surges. It absorbs voltage spikes before they reach and damage your valuable equipment. For sheds housing costly tools or workshop setups, this precaution proves invaluable and could save you significant costs in the long run.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, allowing both the shed and the house to transition safely to generator power during outages, thus maintaining critical operations during emergencies.

What Are the Requirements for Council Approval and Compliance?

Here are several essential considerations to keep in mind:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation — must be handled by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion.
• Depth of underground cable must comply with AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure adherence to during the installation process.
• If the shed is newly constructed, you may require development approval depending on your local council and the size of the shed. While the electrical work itself might not demand a separate permit, the overall construction may necessitate one.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations.

Understanding the Costs Involved in Wiring Your Shed on Acreage

Each shed presents unique challenges — including distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions affecting trenching. However, here’s a realistic cost guide for the Mid North Coast area:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+

Be aware that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and understand your shed's intended use and requirements clearly.

If you would like a straightforward quote tailored to your specific setup, please feel free to call us at 0402 079 803 or contact us here.

Addressing Common Questions About Shed Wiring

Can I Wire My Shed Myself in NSW?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This encompasses tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers to you and your property. Your electrician will issue a Certificate of Compliance once the work is complete, ensuring everything meets the required standards.

How Deep Must Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth for your specific property circumstances, ensuring compliance with safety regulations.

Do I Need a Separate Meter for My Shed?

In most instances, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed functions as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor to ensure compliance with local regulations.

How Long Does It Take to Wire a Shed on Acreage?

A basic shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, generally takes between one to two days once the trench is prepared. If you're digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first.

Can I Run Power From the Shed to Other Buildings?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are adequate from the outset, rather than trying to add components later and potentially creating issues with power distribution.

Ensure Your Shed Wiring is Professionally Completed for Safety

If you are located on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in setting up your shed correctly — whether it involves a basic lighting and power setup or a comprehensive three-phase workshop installation tailored to your specific needs.

Give us a call at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote that meets your requirements effectively.
