Impact of Clay Soil on Caboolture’s Plumbing Systems

If you live in Caboolture, Morayfield, Upper Caboolture, or elsewhere in the Moreton Bay region and have observed wet patches, sinking spots, constant blockages, or cracks in your foundation, you may be concerned that reactive clay soil is compromising your underground pipes.

The foundation in Caboolture is predominantly composed of reactive clay, which expands when exposed to moisture and contracts as it dries. This cyclical behaviour can lead to volume changes of 20% or more. Such fluctuations exert significant pressure on underground pipes during wetter periods, leaving them susceptible to damage as the soil dries out. Older clay sewer and galvanised water pipes are particularly vulnerable. A camera inspection can detect damage at an early stage, while pipe relining often offers an effective solution without the need for excavation.

In Caboolture, your underground pipes are engaged in a continual struggle against the shifting soil.

This ongoing conflict can result in serious pipe damage over time. By the time visible symptoms become apparent, the underlying issues may have been developing for a considerable period.

What Are the Phases of Clay Soil That Lead to Pipe Damage?

There are four critical phases involved: wet swelling (compression), dry shrinking (loss of support), the repetitive stress of the cycle, and the common transition from drought to flood in Southeast Queensland. Each phase exacerbates existing cracks and misaligns joints.

• The wet phase: Intense rainfall in Caboolture causes the clay to absorb water and swell. This expansion generates substantial crushing pressure on pipes from all directions, potentially forcing joints to either separate or come too close together. Rigid pipe materials are particularly susceptible to cracking under such immense pressure.
• The dry phase: When the rain stops and the clay dries, it contracts and pulls away from the pipes. This gap formation creates voids, leading to sagging, bending at joints, and the development of bellies where water and sediment can accumulate.
• The repeated cycle: This process of expansion and contraction recurs multiple times throughout the year in Caboolture’s climate. Each cycle amplifies stress on the pipes and progressively enlarges existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry periods and heavy rainfall seasons. Following an extended dry phase, the clay shrinks considerably. When substantial rain falls, the soil expands rapidly, placing pipes—often resting in loose, cracked ground—under sudden and extreme pressure.

Which Types of Pipes Are Most Prone to Damage?

Older clay sewer pipes (installed in properties built before the 1970s), galvanised steel water mains (from homes constructed prior to 1985), and concrete stormwater pipes face the highest risk. Modern PVC pipes generally perform better, but insufficient backfill during installation can still lead to joint separation. While copper pipes offer more flexibility, they can develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes from homes built before the 1970s in Caboolture are among the first to fail. Their brittle construction and reliance on mortar joints make them particularly prone to cracking.
• Galvanised steel pipes: Utilised for water supply in homes constructed before 1985, these pipes are often compromised by internal corrosion and can crack as the clay soil shifts around them.
• Concrete stormwater pipes: While older stormwater systems generally cope with compression, they frequently crack at joints during ground movement, allowing roots to intrude through these fractures.
• PVC pipes: Modern PVC pipes exhibit greater resilience to ground movement due to their flexibility. significant ground shifts can still cause joint separation, particularly if backfill was poorly executed during installation.
• Copper pipes: Used in newer homes for water supply, copper pipes are more flexible than galvanised steel, but they can still develop leaks at connection points due to the stress of bending.

What Signs Should You Look for to Indicate Damage to Underground Pipes?

Stay alert for wet patches during dry spells, sinkholes or soft areas, slow drainage, unpleasant odours in your garden, unusually lush grass patches, trees exhibiting concentrated root growth in one area, and cracks in your foundation slab. If you notice two or more of these indicators, schedule a camera inspection without delay.

• Wet patches in the yard during dry weather—this may indicate water leaking from a damaged pipe and saturating the surrounding soil.
• Sinkholes or soft spots—these form when soil is washed into a broken pipe, creating an underground void.
• Slow drainage or recurrent blockages—a cracked, shifted, or belly-shaped pipe can trap debris and roots at the damaged locations.
• Unpleasant odours in your garden—a cracked sewer pipe may leak sewage into the adjacent soil.

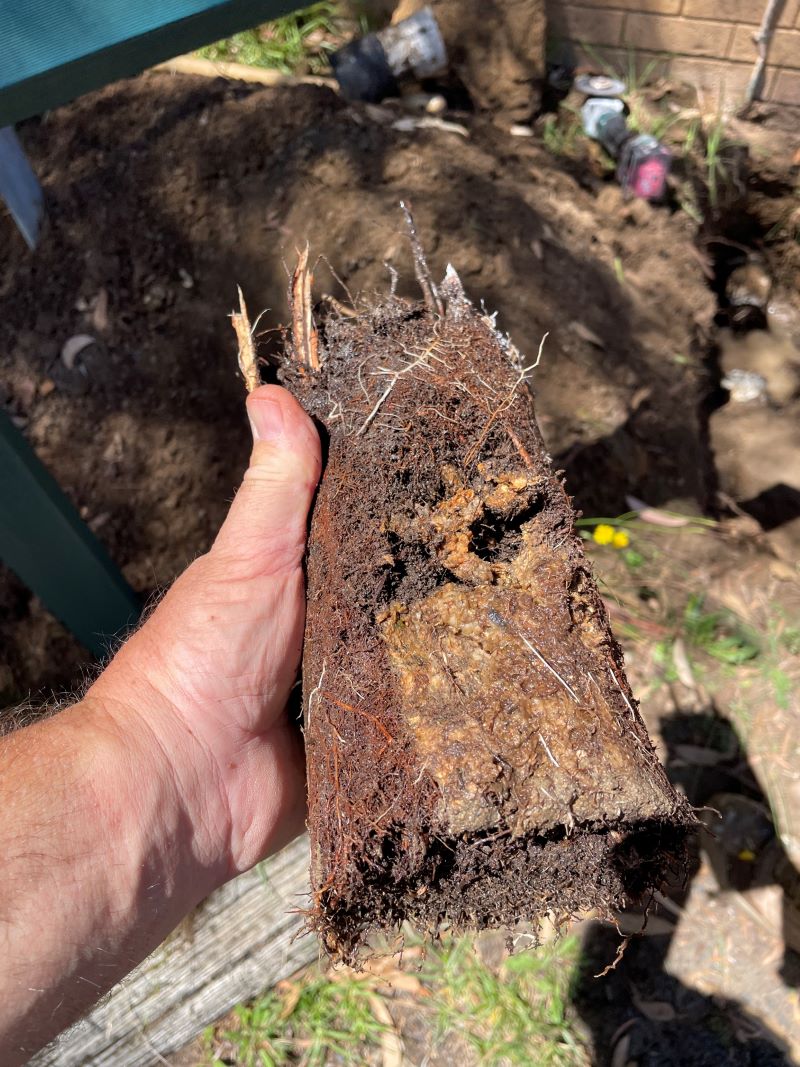

• Tree roots thriving in a specific area—trees can often detect moisture and nutrients leaking from damaged pipes, leading to concentrated root growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home’s structural integrity.

How Do We Detect Pipe Damage?

We utilise CCTV drain cameras to visually inspect the condition of sewer and stormwater pipes in real-time. This allows us to identify cracks, root intrusions, misaligned joints, bellies, and collapses. For water mains, we employ acoustic and thermal leak detection methods, coupled with a comprehensive assessment of the property to anticipate potential future damage.

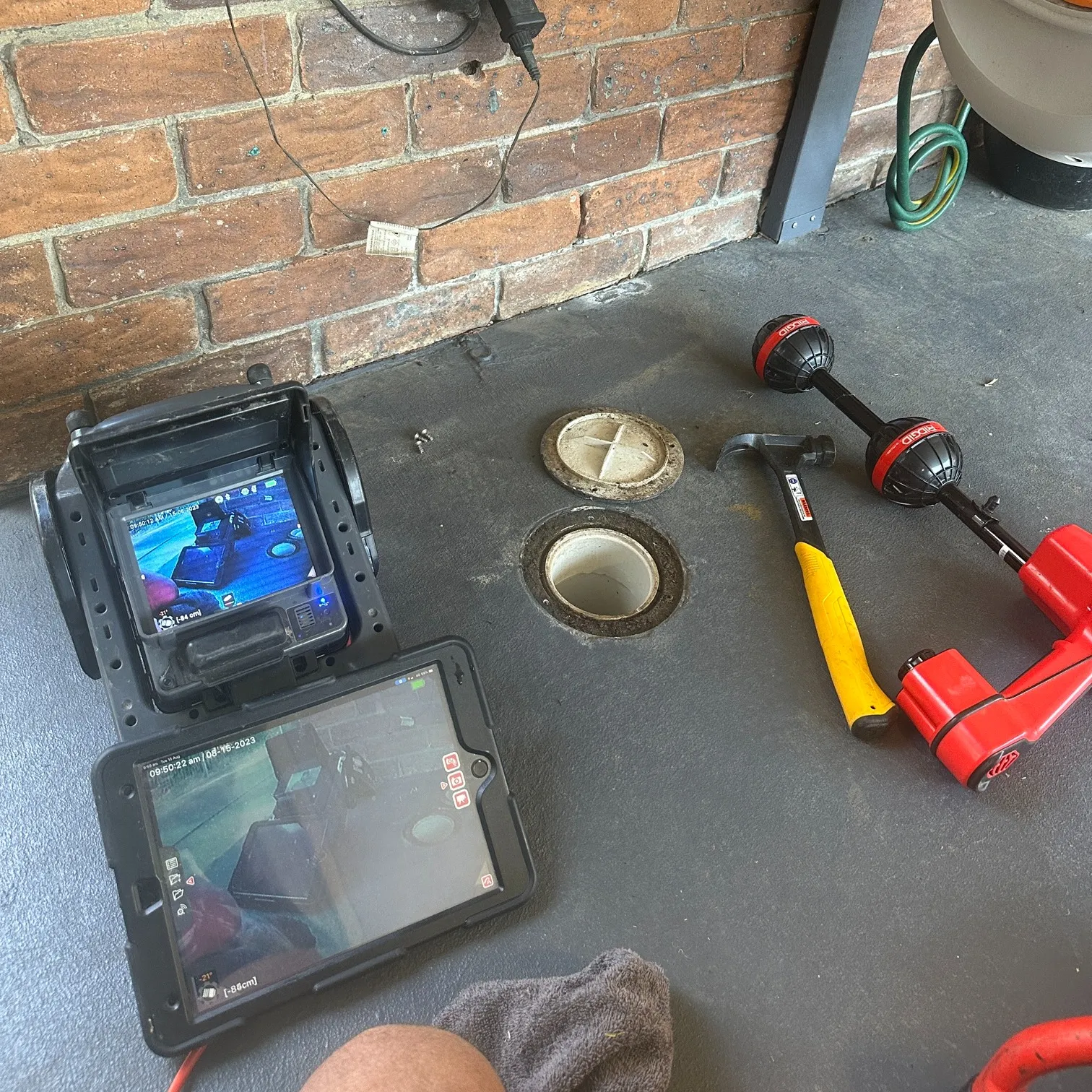

• CCTV drain camera inspection: A camera traverses the pipe, providing live visuals of its condition. We can detect cracks, breaks, root intrusions, misaligned joints, sediment build-up, and collapsed areas.
• Leak detection: To locate leaks in water supply pipes, we employ advanced acoustic and thermal detection tools, enabling us to pinpoint issues without the need for excavation.
• Ground assessment: We evaluate the entire landscape—soil conditions, tree placements, pipe materials, and overall property layout—to understand the causes of damage and predict where future issues may arise.

What Effective Remedies Are Available for Pipe Damage?

Hydro jetting is employed to clear immediate blockages. For cracked or root-invaded pipes, pipe relining serves as the most effective solution, eliminating the need for excavation. Installing French drains and spoon drains can help alleviate future soil movement pressure. Full excavation is only necessary in cases of total pipe failure.

• Hydro jetting: This method effectively clears roots, sediment, and debris from damaged pipes, restoring proper flow and often serving as a preliminary step before conducting a camera inspection.
• Pipe relining: This solution is perfect for cracked and root-invaded pipes in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, thereby avoiding excavation. This solution is designed to last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, minimising the pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it can saturate the soil surrounding underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is not feasible. We replace the damaged section with new PVC pipes placed on sand (instead of clay) to reduce future issues stemming from ground movement.

Why Is Prompt Action Essential to Prevent Pipe Collapse?

Damage to underground pipes in clay soil progressively worsens over time. The situation does not stabilise; it deteriorates. A minor crack today could escalate into total pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, ultimately causing a complete obstruction of the pipe.

The most economical repairs are those undertaken early. A camera inspection reveals the precise conditions underground, allowing you to strategise necessary repairs before an urgent situation arises.

You can also verify our QBCC licence on the QBCC public register before scheduling a booking, as we are a licensed plumbing contractor in Queensland.

To arrange your underground pipe inspection, please call 1300 793 962 or contact us.

Frequently Asked Questions About Clay Soil and Pipe Damage

How Can I Minimise the Risk of Clay Soil Damaging My Pipes?

While you can reduce the risk of damage, complete prevention is not possible. Consistently watering the area around your home during dry spells can help mitigate the shrinkage cycle. Effective tree management can lessen root pressure on pipes. Proper drainage systems also assist in reducing soil saturation. Regular monitoring of pipes in reactive clay soil is crucial—camera inspections can identify issues early.

What Is the Cost Involved in Repairing Pipes Damaged by Clay Soil?

Repair costs vary based on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at approximately $350. Pipe relining for a damaged section typically begins at $4,000, while full excavation and replacement for a collapsed pipe may exceed $8,000, influenced by factors such as depth, length, and accessibility. We provide accurate pricing after conducting a camera inspection.

Is Pipe Relining as Effective as Installing a New Pipe?

In most instances, yes. A relined pipe features a smooth, jointless interior that actually provides better flow than the original pipe. The resin liner resists root intrusion and corrosion, boasting a lifespan of over 50 years. The key advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine If My Property Contains Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Signs to watch for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was constructed with special footings (deeper and reinforced), the builder likely recognised the reactive nature of the soil.

Who Should Avoid This Article?

• If you are located outside the Moreton Bay region—different soil conditions necessitate different solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and neighbouring suburbs.
• If you intend to DIY the plumbing work—underground sanitary plumbing must be conducted by a licensed plumber in Queensland.
• If you are searching for the cheapest quick fix without an inspection—we prioritise thorough assessments; we won’t commence excavation without first conducting a camera inspection.
