Concrete Floor Thickness for Installing a Car Hoist

Crucial Considerations for Installing a Car Hoist in Your Garage

If you are thinking about the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets all necessary specifications. A robust and stable foundation is not only vital for the effective operation of the hoist but is also paramount for guaranteeing the safety of both your vehicles and the individuals operating the equipment. Thorough preparation and strict adherence to established guidelines can significantly improve both performance and longevity, ensuring that your investment remains sound over time.

Most car hoists necessitate a concrete slab that has a minimum thickness of 100mm (4 inches). This specific measurement is crucial as it allows for the even distribution of the weight from both the vehicle and the hoist itself, thereby reducing the chances of any potential cracking or sinking as time progresses. For more heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially reaching up to 150mm (6 inches), to guarantee optimal performance, stability, and safety during operation.

How to Accurately Assess the Required Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a fundamental aspect of the safe installation and operation of a car hoist. Several factors should be considered when determining the appropriate depth for your slab to ensure it can adequately support the loads it will be subjected to during use. Understanding these factors can help prevent costly mistakes and enhance the overall safety and functionality of your garage setup.

Understanding Load Capacity for Your Car Hoist Installation

Car hoists exert substantial stress on the concrete floor beneath them. Hence, it is crucial to grasp the total weight that your concrete floor must support. This consideration includes not only the weight of the vehicle but also the weight of the hoist itself, which can contribute significantly to the total load placed on the floor.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may add an additional 500 to 1,000 kg. Furthermore, it is wise to incorporate extra weight as a safety margin to ensure that the structure can adequately handle unforeseen circumstances, thus minimising potential risks.

For the majority of home garages, a concrete thickness ranging from 100 mm to 150 mm is generally sufficient. However, if you intend to lift significantly heavier vehicles, it may be essential to contemplate a thicker slab to ensure safety and stability during operation, therefore safeguarding your investment.

Engaging a structural engineer is a prudent decision. They possess the expertise necessary to provide tailored advice and assist you in calculating the precise thickness required based on your specific circumstances and requirements, ensuring that you make informed choices.

Examining Various Types of Car Hoists and Their Concrete Thickness Requirements

It is vital to acknowledge that different types of car hoists have unique requirements concerning concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners looking to incorporate a car hoist into their garage, each with varying specifications.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to accommodate the concentrated load effectively and ensure stability during operation.

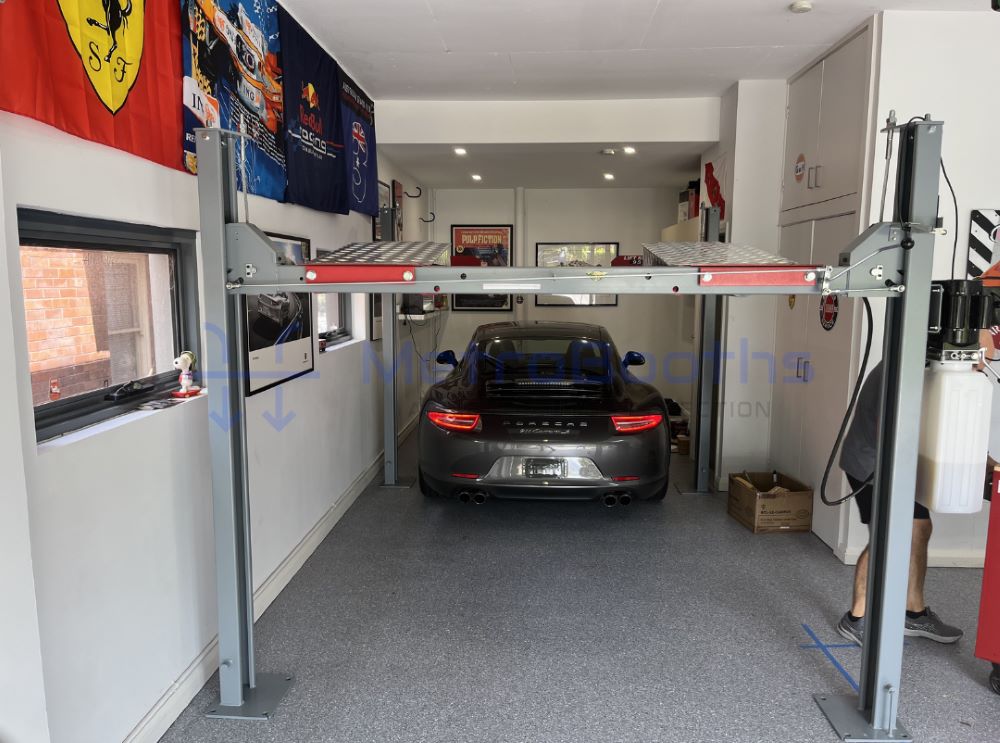

Conversely, four-post lifts generally distribute weight more evenly over a larger area, which allows them to function optimally with a slightly thinner slab, typically within the range of 100 mm to 125 mm. This understanding is paramount in your planning and installation process, ensuring that you select the appropriate hoist for your needs.

Always consult the manufacturer's specifications for the hoist you are considering, as these documents will usually outline the minimum concrete thickness required for safe and effective operation. Adhering to these guidelines is critical for optimal performance and longevity of your hoist installation.

Keep in mind that these recommendations serve as general guidelines. Your specific requirements may vary depending on the configuration of your garage and the types of vehicles you intend to lift, which may necessitate further consultation.

Recognising the Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is equally as important as its thickness. High-strength concrete can often be successfully utilised at a thinner depth while still providing adequate support for heavy loads, which is particularly relevant in the context of a car hoist installation.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting, thus ensuring a robust foundation for your hoist.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor. Consequently, this could allow you to utilise a thinner slab while still ensuring it can effectively support heavy loads during operation without compromising safety.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, making it an excellent choice for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in mitigating the formation and propagation of small cracks over time, ultimately enhancing the longevity of your installation and ensuring safety.

Vital Installation Factors for Successful Car Hoist Operation

When installing a car hoist, meticulous site preparation and consistent floor maintenance are of the utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your valuable investment.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability for the equipment during operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide valuable insights.

Ongoing Maintenance Essentials Following Your Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could impact the functionality of your hoist.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan and enhancing safety.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe and efficient usage of your hoist.

Think about applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile and prudent investment for any homeowner.

Common Questions Regarding Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, providing clarity and guidance for prospective hoist owners.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe and effective operation, thus ensuring safety.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation, thus ensuring reliability.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, adapting to your specific needs.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring safety.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, providing you with peace of mind.
